Blue line
Available as an identification line color selected by customer preference.
COTTON SIEVE CLEANER / COTTON SIFTER PAD
Cotton Sieve Cleaner
Cotton cleaning pads for plansifters, flour milling and grain screening equipment.
CC and CP series, 52 x 75 mm standard size and three thickness ranges.
SeriesCC & CP
Thickness7-9.5 mm
Standard size52 x 75 mm
Packing500 pcs/carton
Product overview
Cotton cleaning pads for plansifter screen surfaces
Cotton Sieve Cleaners, also called Cotton Sifter Pads, move beneath the plansifter screen surface to help dislodge trapped particles, reduce mesh blockage and maintain material flow.
Plansifter cleaning partMoves beneath the screen surface to help dislodge trapped particles and reduce mesh blockage.
CC and CP seriesCC models use 100% cotton; CP models use 80% cotton.
Metal slider optionThe standard version uses a chrome-plated metal slider; a version without the slider is available by request.
Product structure

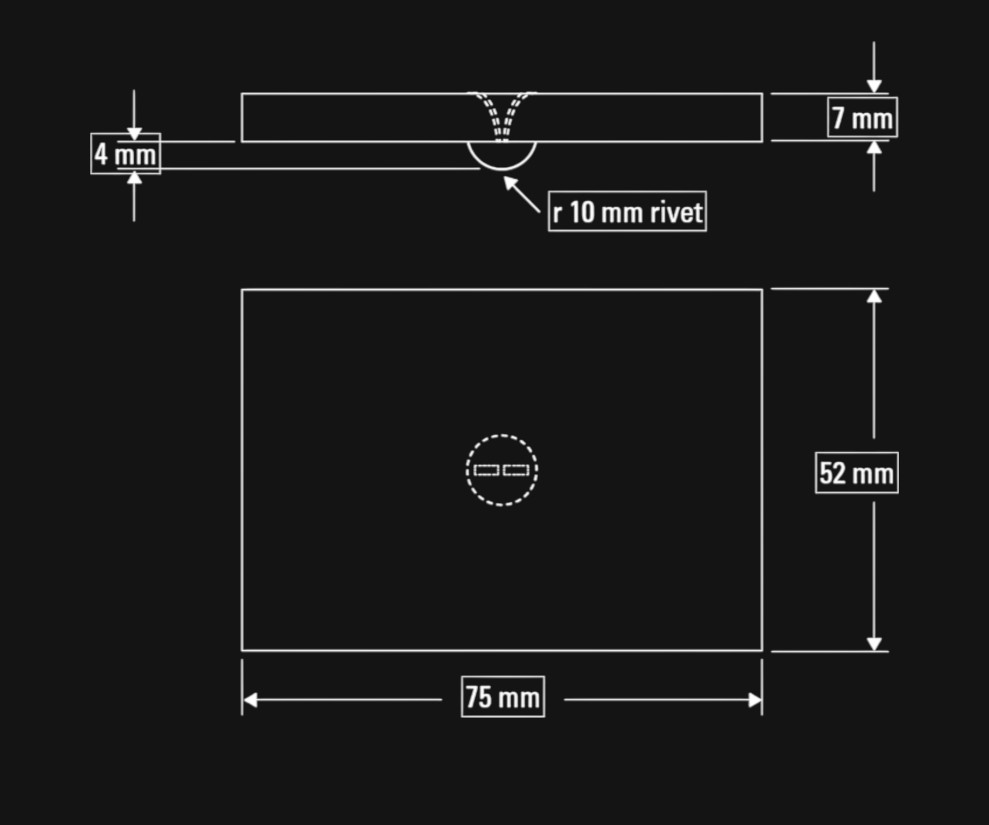

Cotton body, metal slider and standard dimensions

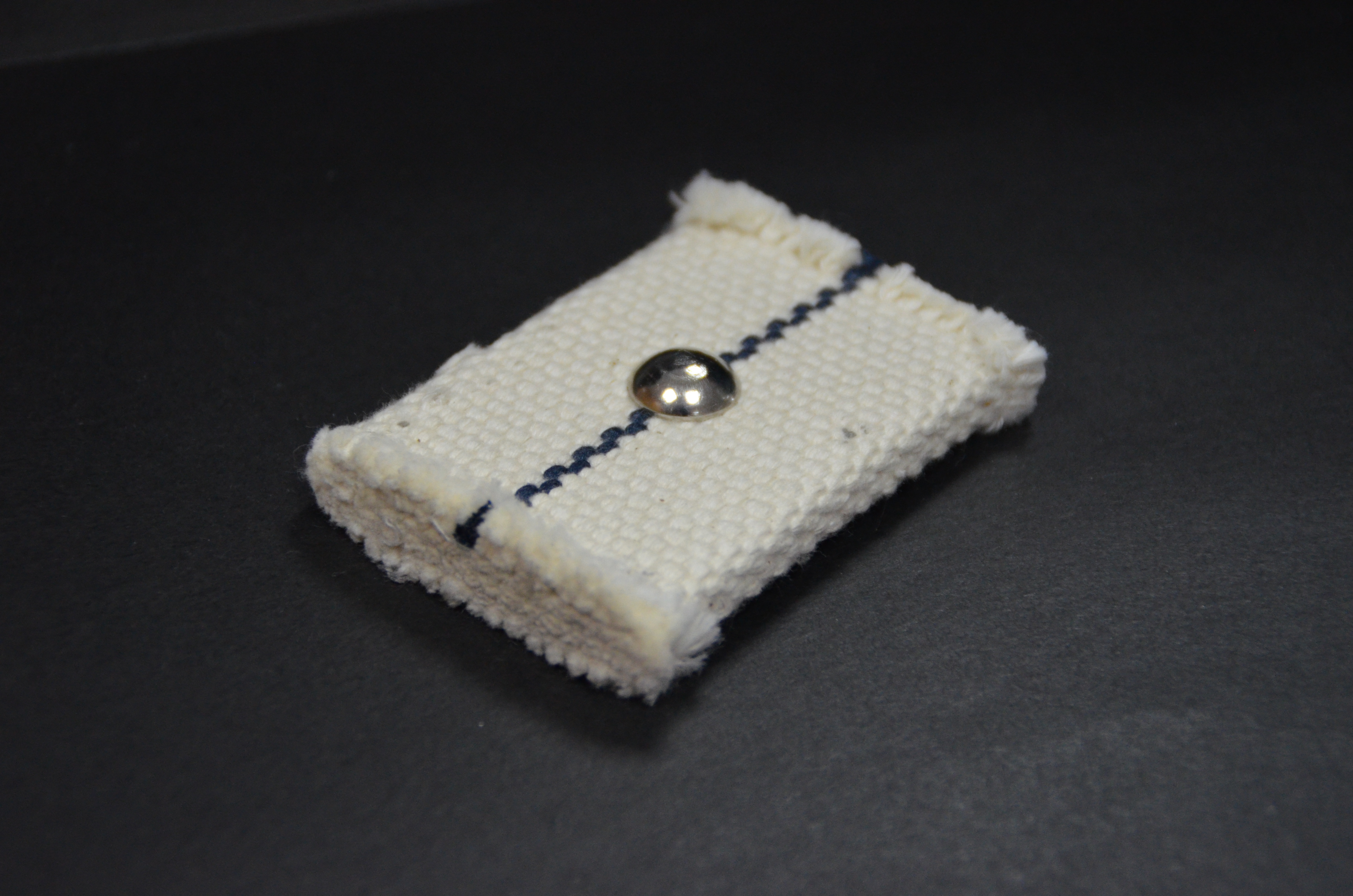

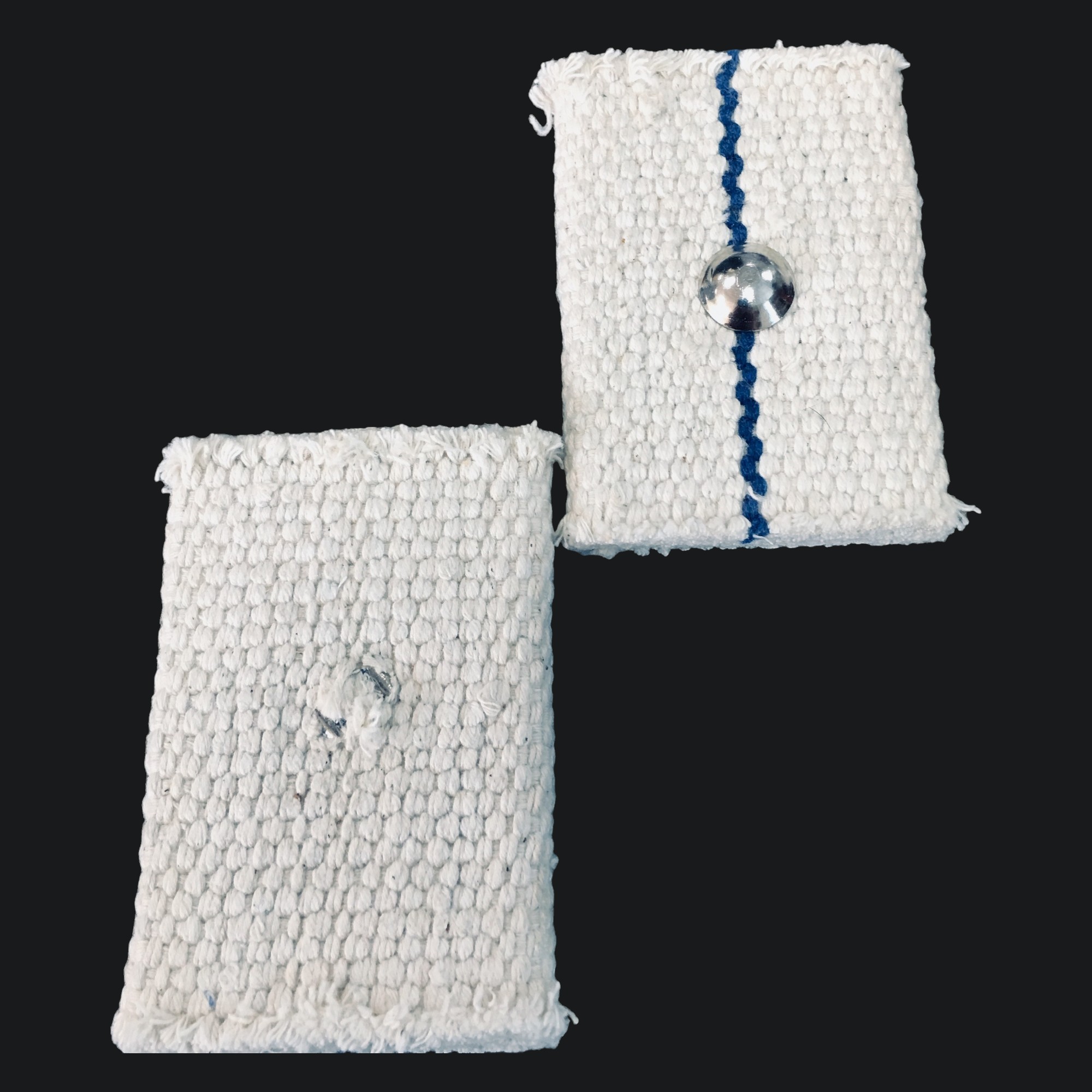

Front, back, side and dimension views help confirm replacement fit before ordering.
Technical data
CC and CP series specifications
| Product | Cotton Sieve Cleaner / Cotton Sifter Pad |
|---|---|
| CC series material | 100% cotton |
| CP series material | 80% cotton |
| Thickness options | 7-7.5 mm / 8-8.5 mm / 9-9.5 mm |
| Standard size | 52 x 75 mm |
| Metal component | Chrome-plated metal slider |
| Standard packing | 500 pcs/carton |
| Identification lines | Blue, green or red, selected by customer preference |
| Model | Material | Thickness | Size | Metal component |
|---|---|---|---|---|
| CC-7 | 100% cotton | 7-7.5 mm | 52 x 75 mm | Chrome-plated metal slider |
| CC-8 | 100% cotton | 8-8.5 mm | 52 x 75 mm | Chrome-plated metal slider |
| CC-9 | 100% cotton | 9-9.5 mm | 52 x 75 mm | Chrome-plated metal slider |
| CP-7 | 80% cotton | 7-7.5 mm | 52 x 75 mm | Chrome-plated metal slider |
| CP-8 | 80% cotton | 8-8.5 mm | 52 x 75 mm | Chrome-plated metal slider |
| CP-9 | 80% cotton | 9-9.5 mm | 52 x 75 mm | Chrome-plated metal slider |
The remaining 20% composition of the CP series is not stated. Identification line color is selected by preference and is not tied to a fixed model.
Identification lines

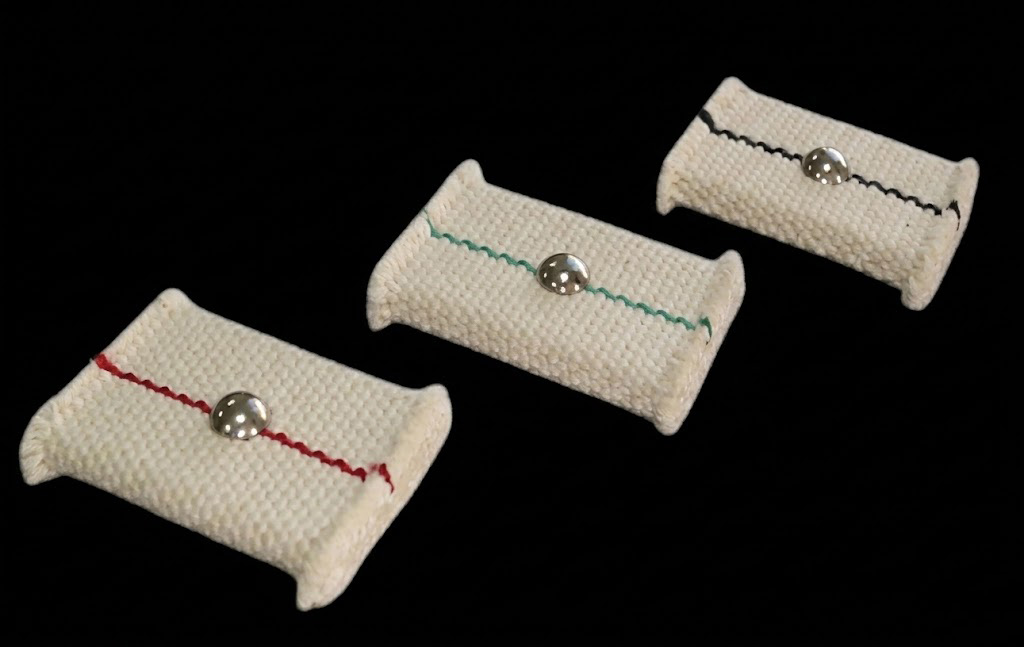

Blue, green and red identification line options
Line colors are customer-selected identifiers and do not represent fixed CC or CP models.

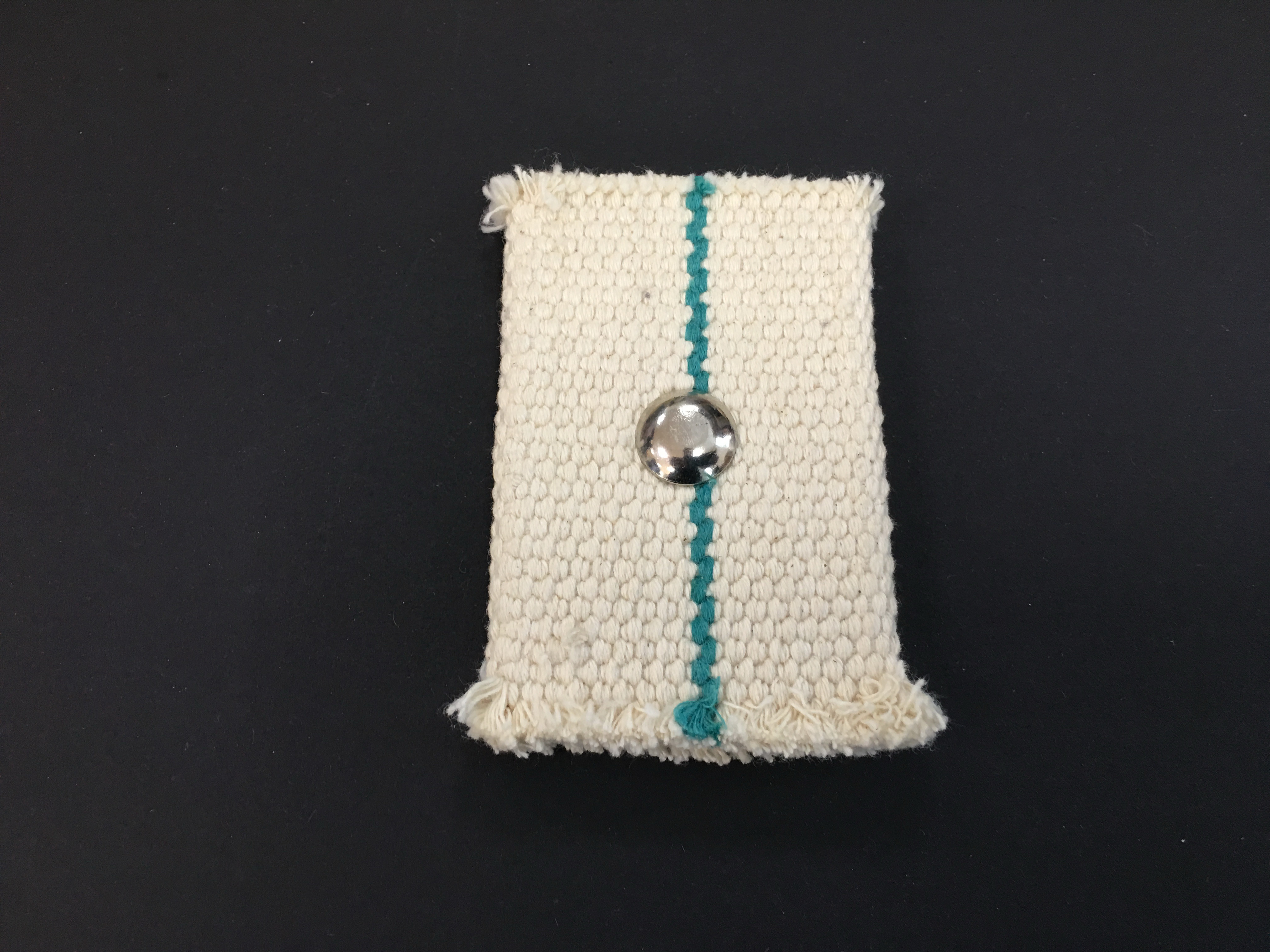

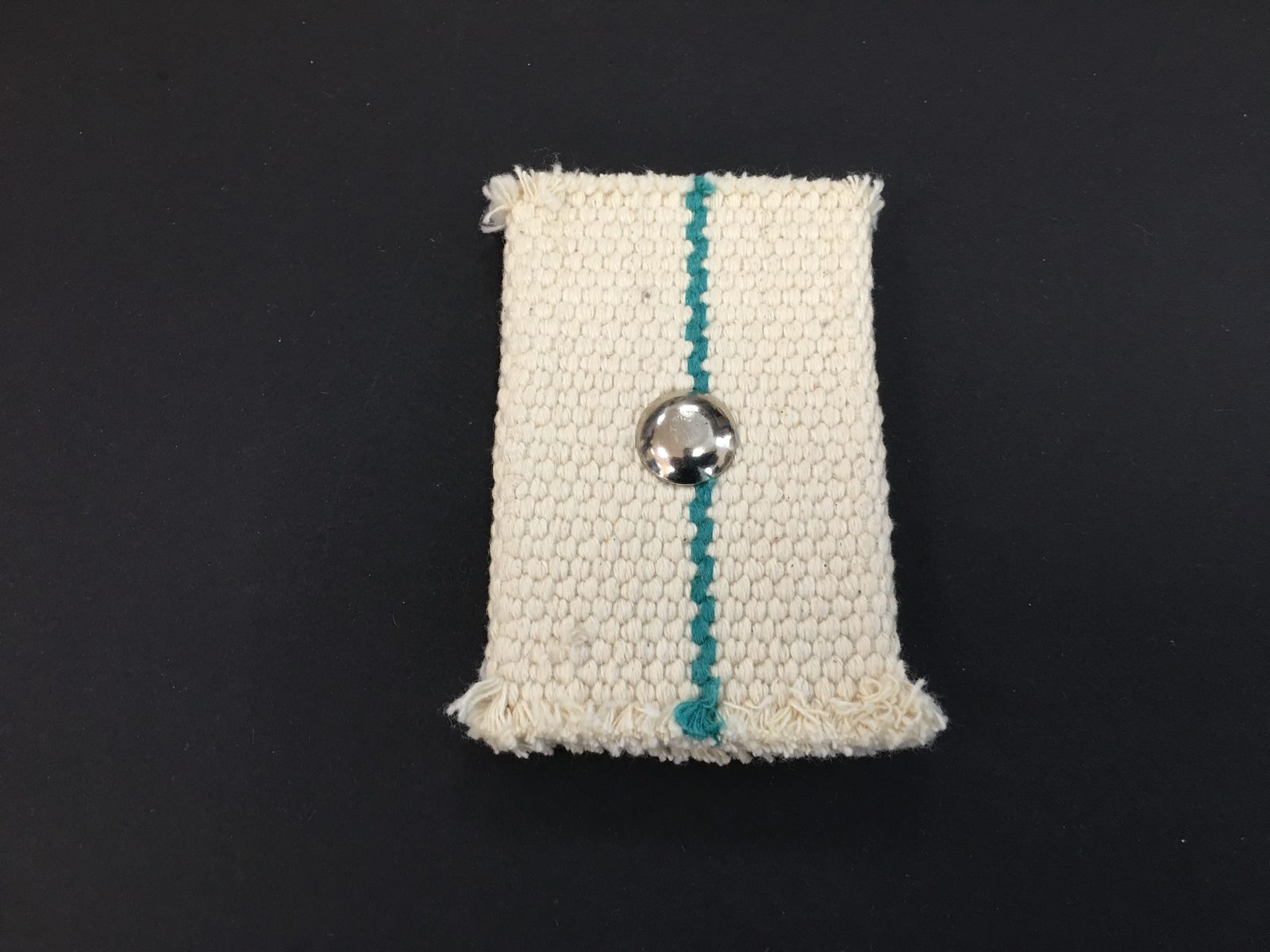

Green line
Available as an identification line color selected by customer preference.

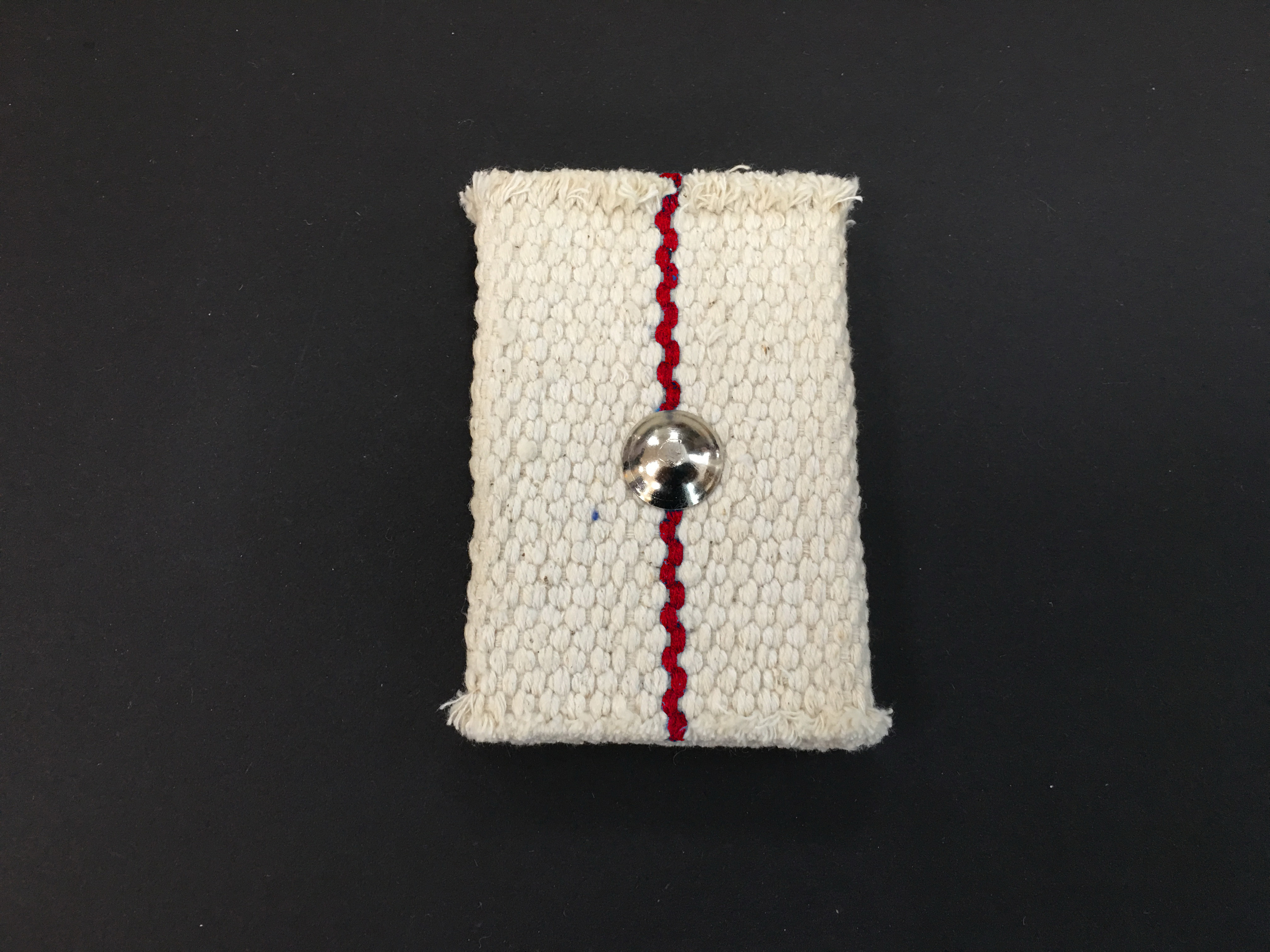

Red line
Available as an identification line color selected by customer preference.
Applications

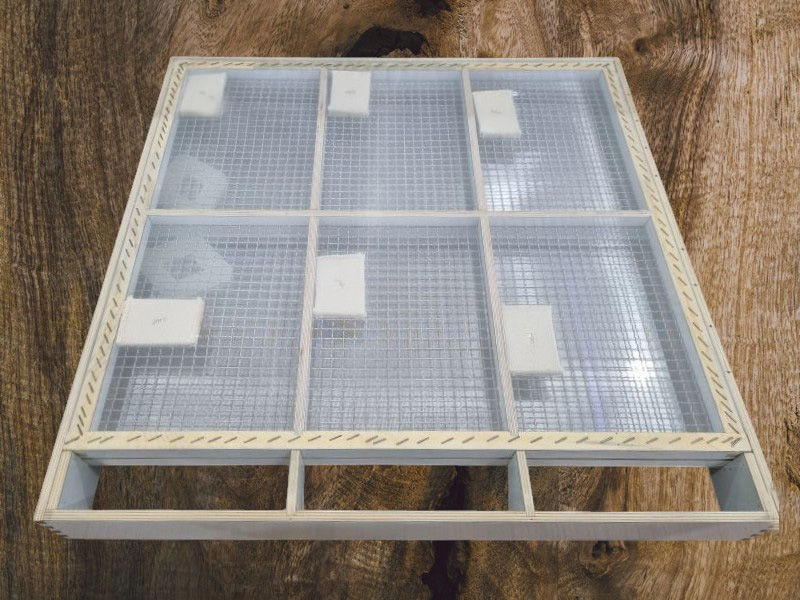

Installed beneath plansifter screen surfaces
The actual sieve frame and cleaner arrangement should be confirmed from the machine or replacement sample.
Plansifters
Installed inside plansifter frames beneath the screen surface.
Flour milling
Used in flour milling equipment to support regular sieve cleaning.
Grain processing
Suitable for grain screening and related material-separation equipment.
Sieve frame cleaning
Moves across the lower screen area to help keep the mesh open.
Customization
Options for replacement and equipment matching
Line color, metal-slider configuration and dimensions can be discussed against the order, drawing or existing sample.
Identification line color
Blue, green or red according to customer preference.
Without metal slider
A version without the metal slider can be discussed for the order.
Alternative dimensions
Non-standard dimensions can be evaluated from a drawing or sample.
Inquiry guide
Information that helps us quote accurately
SeriesCC or CP series
Model or thicknessCC-7 to CC-9, CP-7 to CP-9, or target thickness
SizeStandard 52 x 75 mm or another required dimension
Line colorBlue, green, red or another confirmed request
Metal sliderWith or without chrome-plated metal slider
Quantity and packingRequired quantity and packing preference
EquipmentPlansifter model, sieve frame size or application photo
