Sample matching
Old hose samples, photos and tanker drawings help us match the right size and structure.
AIRSLIDE HOSE / SPECIAL AERATION HOSE
Airslide Hose / Special Aeration Hose
One side air permeable, one side PU-coated for stable bulk powder aeration.
For bulk cement tankers, silo wagons, trailers and dry powder discharge systems.
StructureOne side PU-coated
Diameter58 / 71 / 76 / 77 mm
Length30 / 50 / 100 m
Max lengthUp to 500 m
Product overview
Flexible aeration hose for powder discharge equipment
Airslide hose, also called cement tanker aeration hose or Silobas hose, is a circular woven hose with controlled air permeability. It helps dry bulk powder fluidize and discharge more smoothly in tankers, trailers and silo systems.
Air permeable sideThe uncoated textile side allows air to pass through and fluidize dry bulk powder.

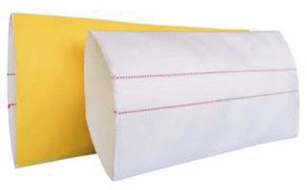

PU-coated sideYellow polyurethane coating improves abrasion resistance and helps direct airflow.
Flexible roll supplyLightweight hose construction makes it easy to coil, cut and install in tankers or silo systems.

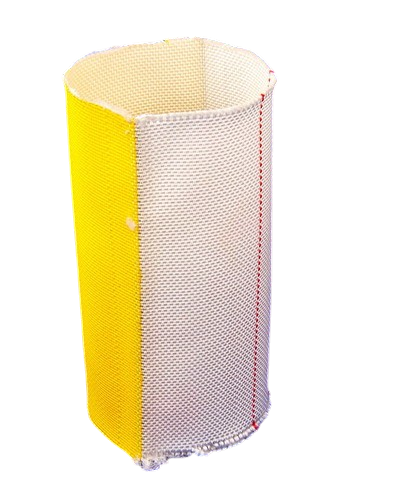

Construction
PU coating outside, controlled permeability inside
The product is built around a practical contrast: the coated side improves abrasion resistance, while the textile side keeps air distribution available for fluidizing dry bulk powder.
Custom length
Standard 30 m, 50 m and 100 m rolls are available; maximum length can reach 500 m.
Replacement projects
Suitable for maintenance, tanker repair and new dry bulk equipment manufacturing.
Technical data
Airslide hose specification
| Air resistance | High pressure: 600-900 Low pressure: 200-500 |
|---|---|
| Standard length | 30 m / 50 m / 100 m |
| Maximum length | Up to 500 m; custom length available |
| Standard diameter | 76 mm; other diameter on request |
| Type Model | Internal diameter | Flat width | Weight |
|---|---|---|---|
| HP/C-1 | 58 mm | 92 mm | 180 g/m |
| HP/C-2 | 71 mm | 113 mm | 210 g/m |
| HP/C-3 | 76 mm | 120 mm | 240 g/m |
| HP/C-4 | 77 mm | 125 mm | 300 g/m |
Custom production is available according to sample, drawing or equipment requirement.
Applications
Used where bulk powder needs fast and even discharge
Airslide hose is especially practical in mobile discharge equipment where a flexible aeration element is easier to install and replace than a rigid air slide system.

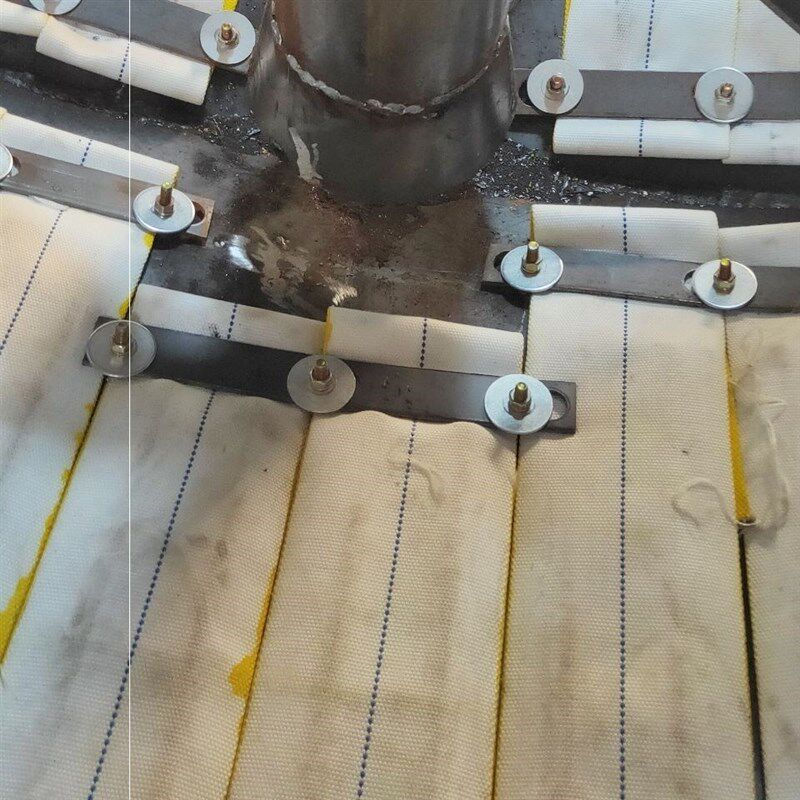

Bulk cement tanker
Aeration and discharge assistance for bulk cement trailers and tanker trucks.
Silo wagon / trailer
Flexible fluidizing hose for mobile dry bulk powder transport equipment.

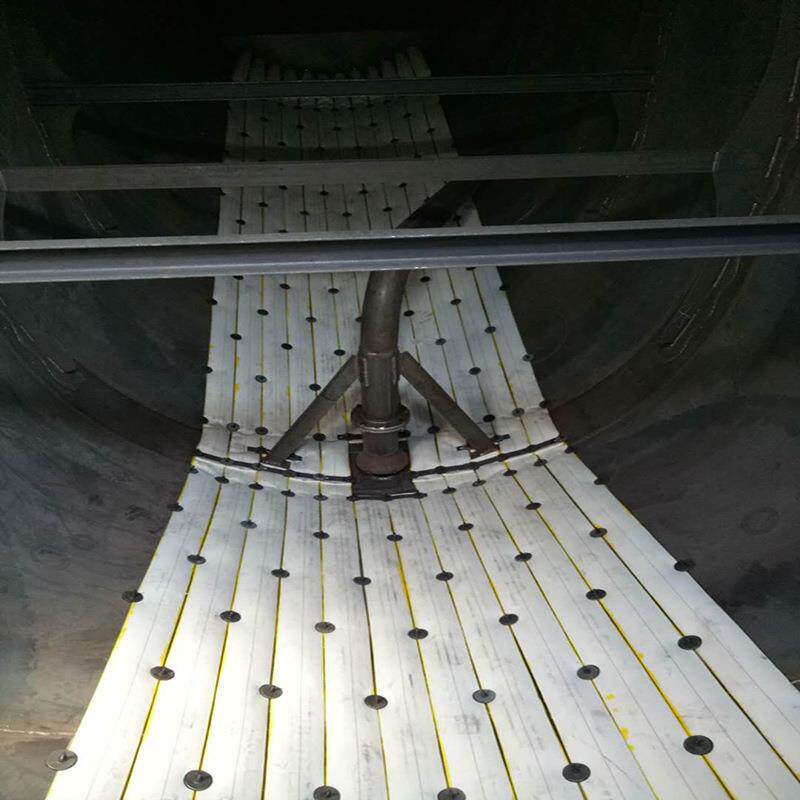

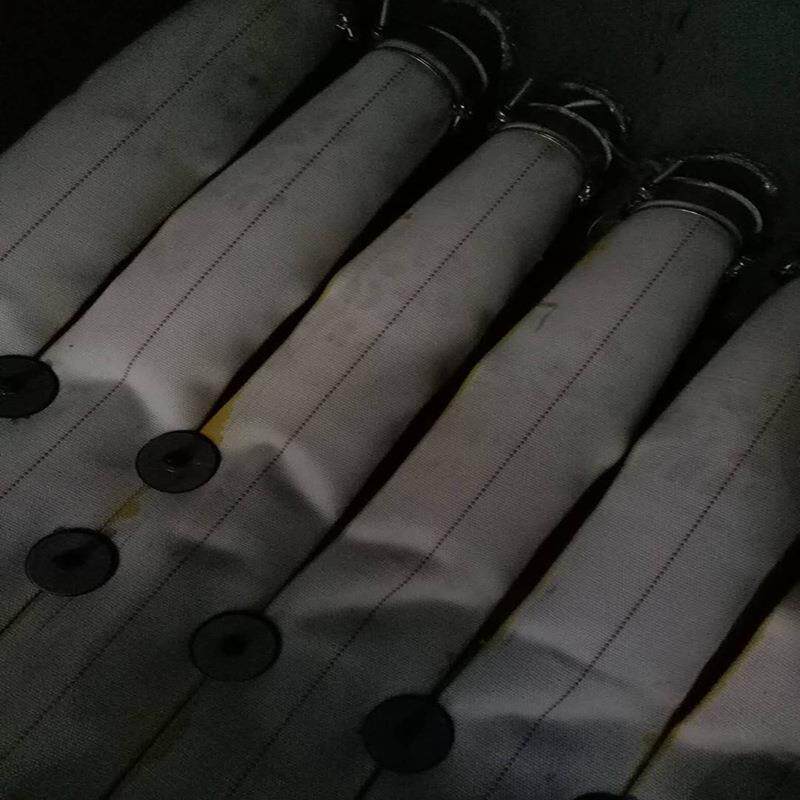

Silo discharge
Powder flow support for silo bottoms, cone sections and fixed storage systems.
Typical materials
Cement, fly ash, lime, flour, grain powder and chemical powder.
Inquiry guide
Information that helps us quote accurately
DimensionInternal diameter, flat width and required roll length
Material handledPowder type, particle size, moisture and discharge condition
EquipmentTanker, silo, trailer or wagon drawing if available
Operating conditionTemperature, pressure and continuous or intermittent use
