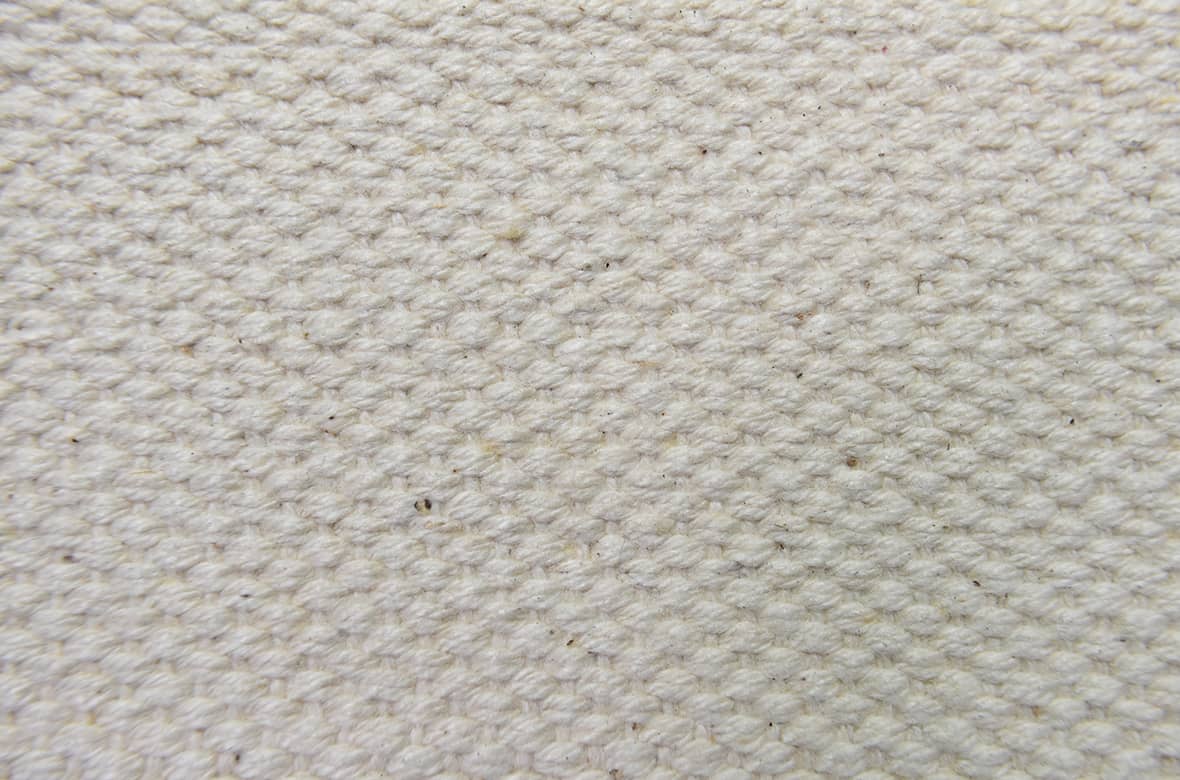

Surface texture
Plain woven cotton texture for stable contact with powder, grain and bakery products.
SOLID WOVEN COTTON BELT
Solid Woven Cotton Belt
100% cotton woven belt with 2*weave edges for clean contact conveying.
For flour milling, bakery and biscuit lines, grain handling, packaging and light to medium conveying.
Material100% cotton
Thickness1.5-10 mm
Max width2500 mm
Roll length50 m or 100 m
Product overview
Natural woven belt for milling and light conveying
Solid woven cotton belt provides a stable textile contact surface for equipment where gentle handling, replacement fit and clear metric specification matter.
Natural textile contactSolid woven cotton gives a soft, stable surface for flour milling, bakery and light conveying lines.
2*weave edgesBoth edges are woven to improve handling, replacement work and regular roll installation.
Custom conversionOpen rolls are standard, and endless joint or drawing-based sizes can be discussed for equipment replacement.
Belt details
Texture, edge and thickness details buyers can check quickly
The page uses the same product photos as the catalog so sales and replacement conversations stay aligned.

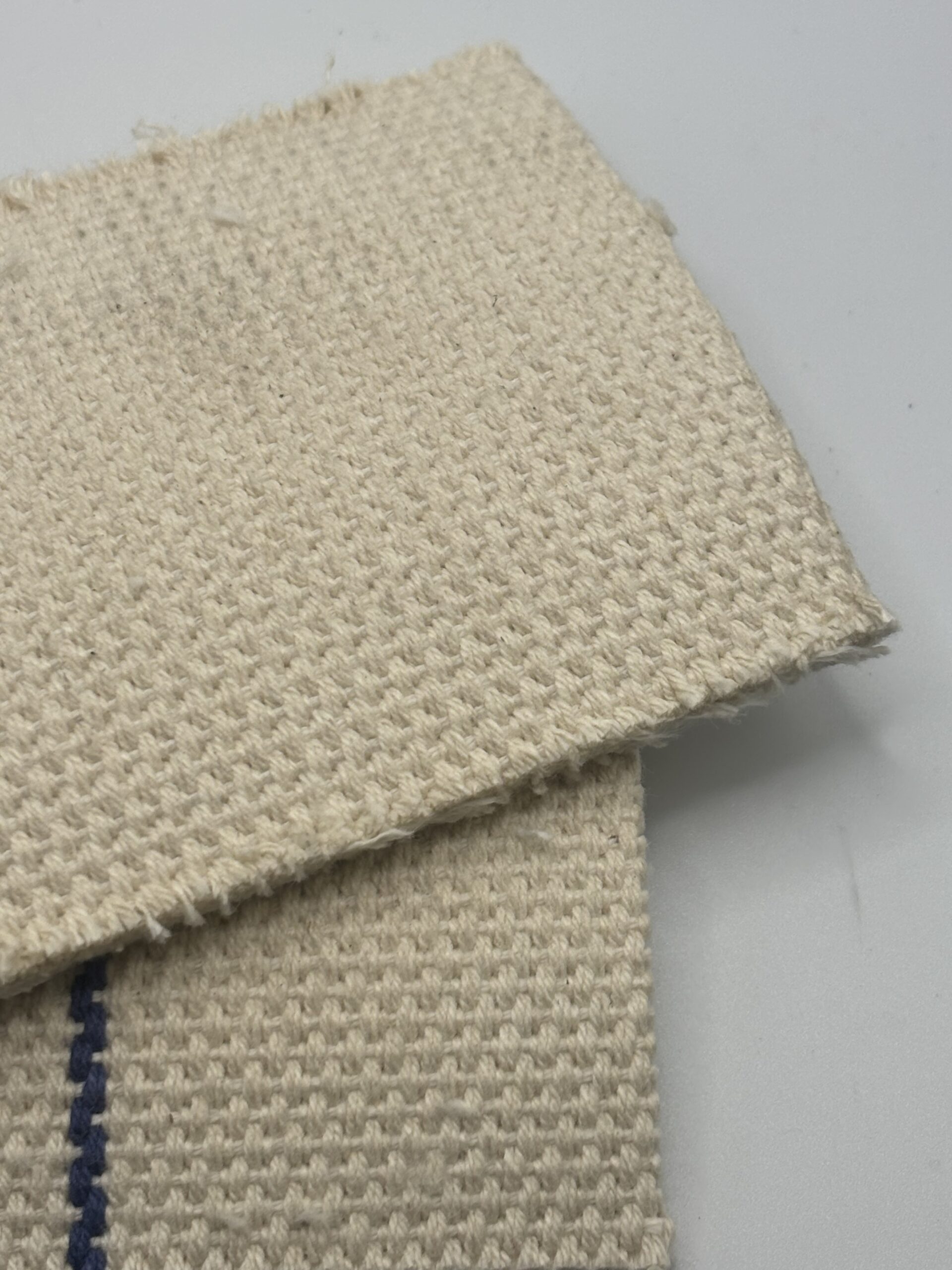

Edge control
2*weave edges help the belt keep a clean textile edge during handling and installation.
Thickness reference
2 PLY, 3 PLY and 4 PLY references help buyers match existing belt samples.
Technical data
Solid Woven Cotton Belt specification range
| Material | 100% cotton |
|---|---|
| Thickness | 1.5-10 mm |
| Maximum width | 2500 mm |
| Standard roll length | 50 m or 100 m |
| 2 PLY reference | Approx. 3 mm |
| 3 PLY reference | Approx. 4 mm |
| 4 PLY reference | Approx. 5 mm |
| Supply form | Open roll or endless joint on request |
| Ply reference | Approx. thickness | Typical use |
|---|---|---|
| 2 PLY | Approx. 3 mm | Light conveying and replacement work |
| 3 PLY | Approx. 4 mm | Common flour mill and bakery line use |
| 4 PLY | Approx. 5 mm | Heavier contact conveying and custom requests |
Ply-to-thickness values are approximate; final specification follows sample, drawing or actual operating condition.
Applications
Used across milling, bakery and light conveying equipment
Solid Woven Cotton Belt is often selected where buyers need a natural textile surface, simple replacement and practical roll supply.
Flour mills
Replacement belts for flour milling equipment and grain processing lines.
Bakery and biscuit lines
Cotton contact surface for bakery conveying and biscuit production equipment.
Grain handling
Light to medium conveying for grain, powder and packaging transfer sections.
Elevator belt after coating
Can be used as elevator belt after customer coating according to equipment needs.
Metric-only specification
The catalog and web page use metric dimensions for clearer export communication.
Replacement support
Width, ply and sample details help us match existing belts without over-specifying the order.
Performance confirmation
FDA, oil resistance, antistatic or exact temperature requirements should be confirmed separately by order.
Inquiry guide
Information that helps us quote accurately
WidthRequired belt width or maximum equipment width
Ply or thicknessTarget ply, thickness or an old belt sample for matching
Roll or endless size50 m / 100 m roll request, or endless belt length
Application and materialFlour, grain, bakery product, packaging item or other conveyed material
Edge and joint2*weave edges, treated edge, open length or endless joint requirement
Sample or drawingPhotos, samples or equipment drawings help confirm the specification
